Mortar Analysis
A detailed understanding of existing mortars is essential in informing and assisting the specification of replacement or repair materials in historic buildings. It can also contribute to understanding a building's construction history. Mortar analysis is often required for listed buildings consent. We provide:
- Identification of the constituents and proportions of all mortars, plasters and renders
- Assessment of hydraulicity
- Determination of non-hydraulic lime; hydraulic lime; natural cements; Roman cements; early cements and Portland cement; cement/lime blends; gypsum and gypsum/lime blends
- Identification of sand, aggregates and additives.
Collapsible content
Standard Analysis
The procedure comprises:
- Visual observations and inspection of the sample.
- Moisture content of the sample as-received.
- Phenolphthalein carbonation test.
- Chemical 'dissolution' tests in accordance with BS4551:2005 +A2:2013 to determine: proportions of acid-soluble calcium, magnesium, iron, sulphur, aluminium, acid and alkali soluble silica, chloride, and acid insolubles; Reaction comments; Presence of acid-soluble calcareous aggregates.
- Identification and microscopic examination by stereo microscope (Leica S9i) of insoluble sands, aggregates and additives.
- Dry-sieving to determine fines proportion.
- Interpretation of results in a detailed report which includes: binder and aggregate type; stereo microscope images of the insoluble material; hydraulicity of binder and evidence of pozzolanic reactions; calculation of original volumetric mix proportions; suggestions for a matching repair or replacement mortar mix recipe on a 'like-for-like' basis and possible explanations for failure, poor performance or deleterious reactions (if applicable)
£425.00+VAT/sample

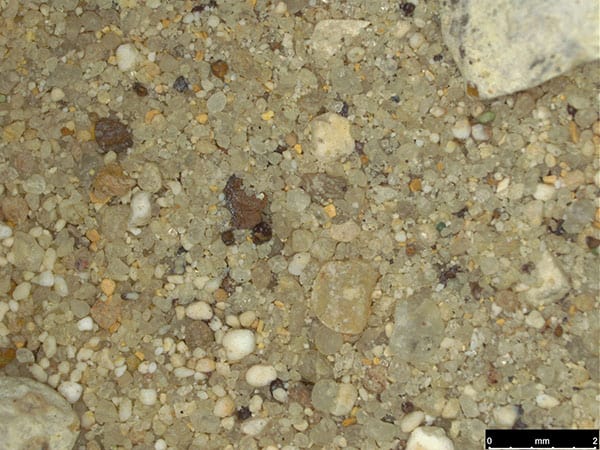

Figure 1. Insolubles (>63µm) from a Roman bedding mortar. View under stereomicroscope at magnification x10.
Collapsible content
Thin Section Analysis
Thin section analysis can be used to augment the standard analysis and gives further information on the sample. This analysis comprises:
- The Standard Analysis Procedure
- Optical microscopy by thin section analysis with compound microscope (Leica DM2700M). In transmitted, plane and cross polarised light, to determine: pore structure, porosity, micro-cracking; textural/spatial interrelationships between components; the presence of lime nodules; mineral identification of sand and aggregates. In reflected light, to identify components of hydraulic binder and determine potential mortar layers.
Collapsible content
Stone Identification
Stone type identification can be undertaken to identify a specific building stone and the closest operating source of the same stone. This analysis comprises:
- Survey and assessment of stone use in historic, vernacular and modern built structures (including listed structures, Scheduled Ancient Monuments etc)
- Building stone matching service, petrographic analysis (including thin sections, carbonate acetate peels, weathering features, textures, cement diagenesis) and stone composition (covering all sedimentary, igneous, metamorphic and volcaniclastic rock types)
- Compilation and assessment of stone technical data reports (including stone strength, durability, porosity, abrasion and slip resistance)
- Identification and investigation of former quarry sources for building stones and evaluation of substitute source locations.
From £475+VAT/sample
Collapsible content
XRD Analysis
X-ray diffraction (XRD) is a highly precise analytical technique used to identify the crystalline mineral phases present within historic mortars. By measuring the unique diffraction patterns produced when X-rays interact with a finely powdered sample, XRD enables the definitive characterisation of binder types (such as calcite, hydraulic phases, or unreacted lime) and aggregate mineralogy.
At Rose of Jericho, XRD analysis forms a cornerstone of our material investigations, providing robust, reproducible data to support conservation decisions. It is particularly valuable in distinguishing between non-hydraulic and hydraulic lime systems, identifying pozzolanic reactions, and detecting later cementitious additions or contaminants.
When integrated with complementary techniques such as microscopy and chemical analysis, XRD allows for a comprehensive understanding of mortar composition, informing accurate specification, compatible repair materials, and conservation-led interventions grounded in scientific evidence.
Collapsible content
Additional Investigative Techniques
Further additional instrumental techniques can be employed if necessary.
- SEM (Scanning Electron Microscopy) combined with EDX (Energy Dispersive X-ray spectroscopy)
- XRD (X-ray diffraction) & XRF (X-ray fluorescence) micro analysis
- DTA (Differential Thermal Analysis)
- Water soluble salt analysis
Enquire for these services by calling 01935 83676

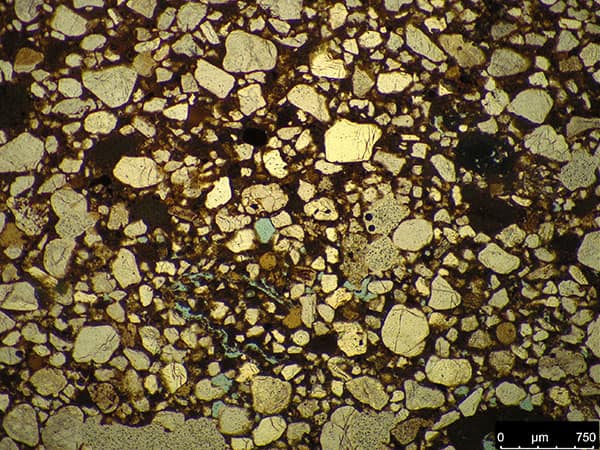

Figure 2. Medieval lime mortar. Microscopy of a thin section under transmitted plane polarised light (magnification x25). The blue colour represents resin impregnated pores.

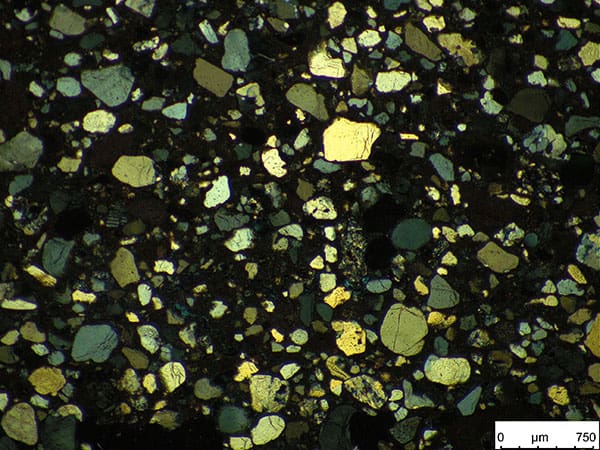

Figure 3. Medieval lime mortar (Same image as Fig. 2).Microscopy of a thin section under transmitted cross-polarised light (magnification x25) showing quartz grains.

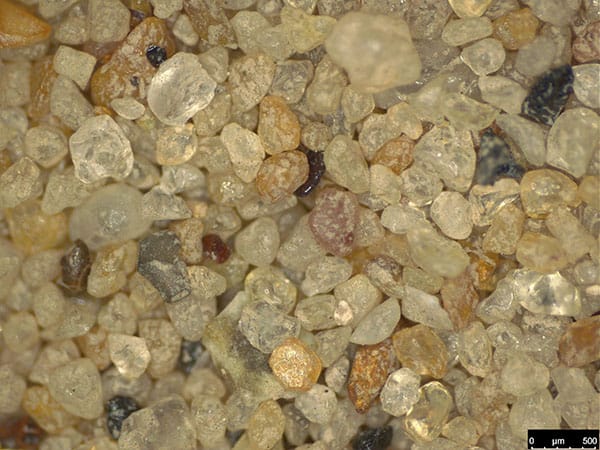

Figure 4. Insolubles (sand >63µm) from a lime plaster. View under stereomicroscope at x30.
Collapsible content
Additional Information
- A representative sample of at least 60g is required where possible, and contextual information is always useful. Smaller amounts of material can be assessed where it is not practical or appropriate to obtain more but may limit what testing is possible.
- Samples may be delivered to our offices: Horchester Farm, Holywell, Dorchester DT2 0LL.
- Mortar analysis normally takes three to four weeks.
- Please note that two-coat plaster, for example, is two samples if both coats are to be tested.
Historic mortars overtime
The great majority of historic mortars were based on lime, but traditional limes varied depending on many factors including the particular limestone burnt, kiln design, fuel type and kiln temperature. Binder:aggregate ratios vary and pozzolanic reactions may have occurred, or deleterious processes taken place. Aggregate type and grading, fines proportion and void ratio also affect performance. The picture becomes complex from 1780 with the development of Roman cement, artificial hydraulic limes, early cements and eventually Portland cement by about 1840. Learn more by reading our articles.
